Fixed Tilting Speed 8000 Kg Welding Positioner For Pipe Welding
200mm Eccentricity
Quick Detail:
- SHB lifting welding positioner can adjust table height according to
working requirement.
- Working table can do three acts as revolving infinitely and tilted
within degree 0°～120° and height adjusting, which make the tank at
ideal position.
- With T-slots on the table surface for clamping work-piece. Also can
add a chunk to help clamp the work-piece well.
- The production has complete range of specification, catering for
welding of all sizes of workpiece.
Also it has both standard and custom-made style. We can make the
product according to client choice.
Description:

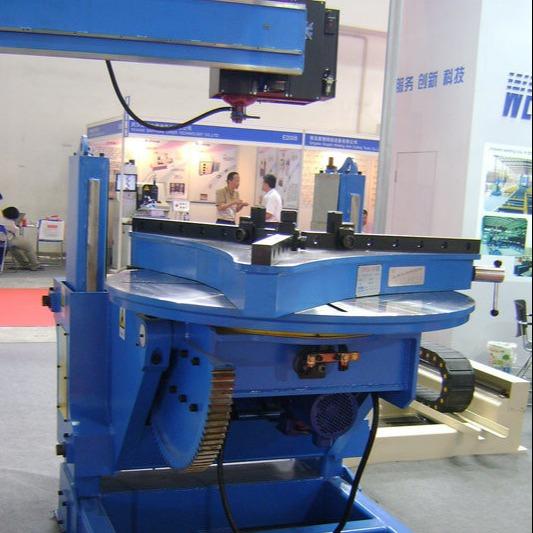

Welding positioner is consisting of worktable revolving mechanism,
overturning device and electric control system. The work-piece can
be reach to the most suitable position through worktable
lifting,revolving and overturning.
The worktable revolving and tilting controlled by step-less
frequency conversion to achieve a best welding speed. Lifting
controlled by manual and fixed by bolt.
Standard type welding positioner can't meet all work-pieces’
processing, please provide your work-piece’s weight, shape and
other specification in detail so that we can provide the best
solution way for your reference.
Applications:
It used in many industries such as pipe, tank, pressure vessel,
boiler, freezing equipment, power station construction,
metallurgical, engineering machinery, marine building, and
petro-chemical industries etc.
Specifications:
Model | SHB10 | SHB20 | SHB40 | SHB60 | SHB80 | SHB100 | SHB150 | SHB200 |
Rated loading weight (kg) | 1000 | 2000 | 4000 | 6000 | 8000 | 10000 | 15000 | 20000 |
Max eccentricity distance (mm) | 150 | 150 | 150 | 150 | 200 | 200 | 200 | 200 |
Max gravity distance (mm) | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 |
Worktable diameter (mm) | 900 | 1200 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 |
Tilting angle | 0-135° | 0-135° | 0-120° | 0-120° | 0-120° | 0-120° | 0-120° | 0-120° |
Revote speed (rpm) | 0.12-1.2 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 |
Tilting speed(rpm) | 0.29 | 0.25 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 | 0.15 |
Revote driving power (kw) | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 | 3 | 4 | 5.5 |
Tilting driving power (kw) | 1.1 | 1.5 | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 |
Speed adjustable way | REVOTE SPEED IS VFD CONTROL |
TILTING SPEED IS FIXED |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
