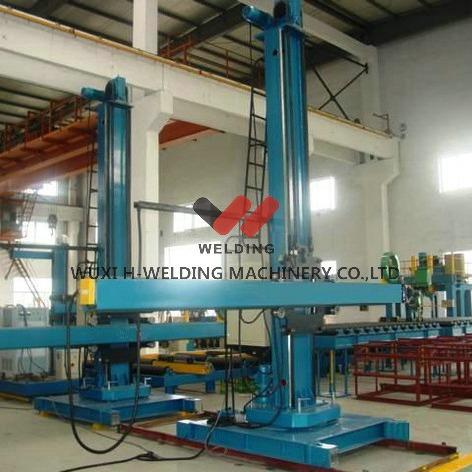

Heavy Metal Welding Manipulator LHZ6060 Automatic Column and Boom
For Seam Welding
Quick Detail:
- 1. Pressure vessels welding
- 2. Pipe manufacturing industries
- 3. Wind power fabrication
- 4. Chemical & fuel storage tank fabrication
- 5. Any heavy cylindrical welding job
Applications
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind tower fabtication
4. Chemical & fuel tank fabrication
5. Heavy metal structure
Specifications:
Main technical parameter |
Model | LH3030 | LH4040 | LH5050 | LH6060 | LH7070 |
Structure: | Travel & Rotation | Travel & Rotation | Travel & Rotation | Travel & Rotation | Travel & Rotation |
Boom horizontal stroke : mm | 3000mm | 4000mm | 5000mm | 6000mm | 7000mm |
Boom vertical stroke : mm | 3000mm | 4000mm | 5000mm | 6000mm | 7000mm |
Boom horizontal speed : mm/min | 150-1500 | 150-1500 | 150-1500 | 150-1500 | 150-1500 |
Boom vertical speed : mm/min | 1000 | 1000 | 1000 | 1000 | 1000 |
Boom horizontal motor power : kW | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
Boom vertical motor power : kW | 2.2 | 2.2 | 3 | 3 | 3 |
Column rotating angle | ±180° | ±180° | ±180° | ±180° | ±180° |
Column rotating speed- Optional : rpm | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Column rotating motor-Optional : kW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Column rotating locking method | By manual | By manual | By manual | By manual | By manual |
Boom end max. loading | 300kg | 300kg | 300kg | 300kg | 300kg |
Trolley traveling speed-Optional: mm/min | 3000 | 3000n | 3000 | 3000 | 3000 |
Rail inner span(mm)-Optional: mm | G-G2000 | G-G2000 | G-G2000 | G-G2000 | G-G2500 |
Column boom / SAW welding manipulator Optional Machine:
1. Tandem-twin Submerged Arc Welding machine;
2. Narrow Submerged Arc Welding machine;
3. Arc Tracing unit;
4. Welding oscillator;
5. Flux recovery & convery machine;
6. TIG welding machine;
7. Gas shielding welding machine;
8. Lincoln welding power or chinese welding power;
Company Profile:
Wuxi H-welding Machinery Co.,Ltd was founded in 2007. We are an export-oriented company and a subsidiary of Wuxi
H-Power Group.
We specialize in the production of welding turning rolls, welding manipulators, welding
positioners,CNC flames, plasma cutting machines, H-beam steel
production lines and wind tower production lines. OEM and ODM projects are welcome
as well.
Our products are widely marketed in the Middle East, South and
North America, Africa, Southeast Asia, Australia and Europe.
One-Step Service Provider:We have our own processing factory and
trading company, allowing us to provide one-stop services, from
design, production and delivery to after-sales service. For more
information, contact us today.
