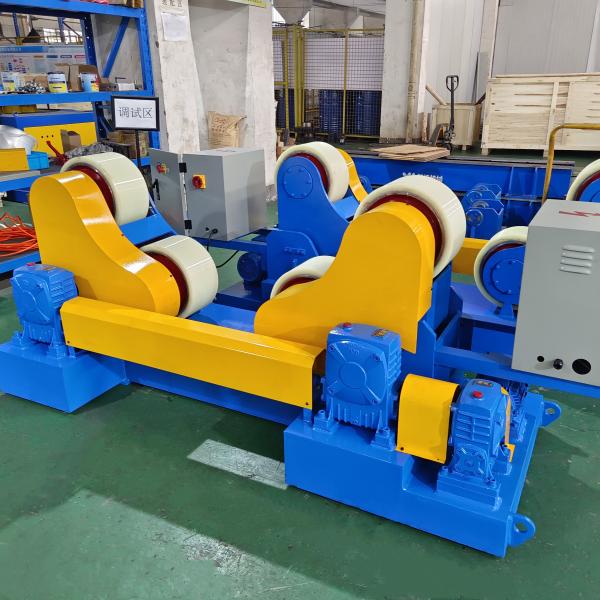

20 Tons Welding Rotator Self Aligning welding roller pipe tube roll
for welding
Brief Detail:
- Self aligned rotator is widely used for pipe, boilers, pressure
vessel, oil tank and other cylinder’s assembling, burnishing and
welding.
- The machine can assort all kinds of auto welding and manual
welding.
- The Welding Rotator can help improve welding quality ,lessen
welding labor and improve productivity.
- The distance between wheels can be adjusted automatically;
- There are several specifications for customer choose;
- We also can special design according to customer’s requirements.
Description:
This series welding rotator has the types of self-aligned,
conventional which are suitable for welding, polishing, assembly
for pipe/tank/vessel longitudinal and transverse seam welding.
Welding rotator can be auto adjusted according to the size and
weight of cylinder, VFD rotary speed control, improving the
reliability of operation.
Our company also can customize welding rotator in all varieties
according to client's requirements.
Applications:
It used in many industries such as pressure vessel, boiler,
freezing equipment, power station construction, metallurgical,
engineering machinery, marine building, and petro-chemical
industries etc.
Specifications:
Type |
Max loading(kg) |
Range of suitable work piece(mm) | Dia and width of the wheel(mm) |
Roller linear velocity(m/h) |
Power of motor(kw) |
Way of setting |
| Rubber roller | Metal rollers |
| HGZ-5 | 5000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 6-60 | 0.75 |
Variable frequency control
|
| HGZ-10 | 10000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 6-60 | 1.1 |
| HGZ-20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 6-60 | 1.5 |
| HGZ-40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 6-60 | 3 |
| HGZ-60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 6-60 | 4 |
| HGZ-80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 6-60 | 4 |
| HGZ-100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ490×70 | 6-60 | 5.5 |
| HGZ-150 | 150000 | Φ1000-6500 | according to customer requirement | 6-60 | 2×3 |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
Company Profile:
HISTORY
10 years focus on this industry, That means we know what works and
what does not when it comes to welding equipment.
QUALITY
Our machines are built to stringent certification. There is NO
OTHER welding equipment built to higher standards than the
H-WELDING. Reputation is our life.
PACKAGE
Professional container package team, ensure a prefect machine can
be send to your hand.
INSTALLATION AND COMMISSIONING
A young but professional installation team, active all round the
world with our machine, like a your friend always at his service.
AFTER SERVICE
Feedback with your problem or pictures within 24hour.
FAQ:
Why h-welding?
Because we work closely with manufactures to understand their needs
and provide the right machine solutions, accessories and
consumables to support business growth. We are committed to
providing each customer with the finest service and support
available. Reliability and quick response all backed by our fully
trained support staff and technical support center in H-WELDING.
