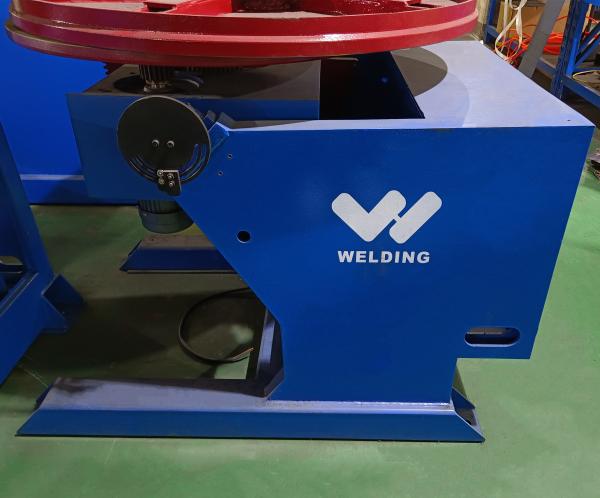

H-Welding Welding POSITIONER steel turning table rotary adjustable
table for pipe welding
Description:
The welding positioner is consisting of a worktable revolving
mechanism, an overturning device, and electric control system. The
workpiece can be reached the most suitable position through
worktable revolving and overturning devices.
The worktable revolving is controlled by step-less frequency
conversion to achieve the best welding speed.
Standard-type welding positioners can't meet all workpieces’
processing, please provide your workpiece’s weight, shape, and
other specifications in detail so that we can provide the best
solution way for your reference.
Applications:
It is used in many industries such as pipe, tank, pressure vessel,
boiler, freezing equipment, power station construction,
metallurgical, engineering machinery, marine building, chemical
industries, etc.
Datasheet:
| Model | HB 1 |
| Rated loading (kg) | 100 |
| Revolve speed (rpm) | 0.1-1 |
| Tilt speed (rpm) | 2 |
| Work-table dia. (mm) | Φ400 |
| Max.Eccentricity distance (mm) | 100 |
| Max gravity center distance (mm) | 150 |
| Work-table tilting angle | 0-120° |
| Revote driving power (kW) | 0.06 |
| Tilting driving power (kW) | 0.18 |
| Revolve dia. at 90°(mm) | ≦600 |
| Size | L (mm) | 740 |
| H (mm) | 420 |
| B (mm) | 527 |
| Equipment weight (kg) | 70 |
| Speed adjusting way | Rotation speed VPD controll |
| Tilting speed fixed (Common break motor) |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special designs.
Company Profile:
Wuxi H-welding Machinery Co., Ltd was set up in 2017. H-welding is
a technical and production-oriented enterprise that is mainly
engaged in R&D, design, manufacturing, installation and
commissioning, technical training, and consulting services of
industrial robot integration, intelligent welding equipment, steel
structure automatic production lines, and various non-standard
customized automatic equipment.
The H-welding has always implemented the business philosophy of
“integrity and pragmatism,people-oriented”, with the tenet of
“high-quality products, first-class service”, together with the
rich experience accumulated over the years, combined with
international advanced welding and automation equipment technology,
and constantly develop new products according to market needs.
H-welding actively introduces international advanced industry
technology and strives to develop and provide customers with a full
range of solutions through scientific management methods, advanced
business concepts, and strong technical development strengths.
FAQ:
Why h-welding?
Because we work closely with manufacturers to understand their
needs and provide the right machine solutions, accessories and
consumables to support business growth. We are committed to
providing each customer with the finest service and support
available. Reliability and quick response are all backed by our
fully trained support staff and technical support center in
H-WELDING.
HISTORY-
10 years of focus on this industry, means we know what works and
what does not when it comes to welding equipment.
QUALITY-
Our machines are built to stringent certification. There is NO
OTHER welding equipment built to higher standards than the
H-WELDING. Reputation is our life.
PACKAGE-
Professional container package team, ensure a perfect machine can
be sen.
INSTALLATION AND COMMISSIONING-
A young but professional installation team, active all around the
world with our machine, like your friend always at his service.
AFTER SERVICE-
Feedback with your problem or pictures within 24 hours
