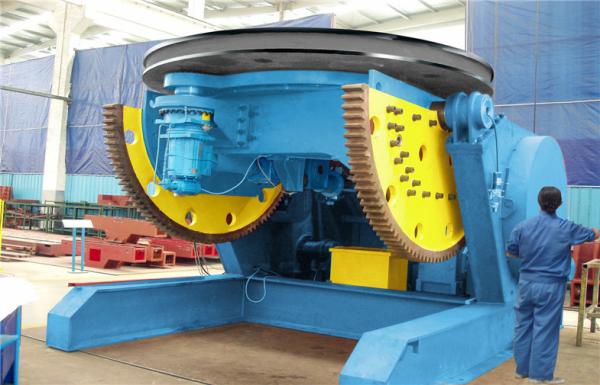

H-welding Machinery Single Bed Positioner lifting rotary welding
positioning equipment
Brief Introduce:
Welding positioners and welding manipulators are important
equipment among welding auxiliary equipment.
The welding positioner, one of the welding auxiliary equipment, was
composed of a work table, a reducer, a slewing bearing, and a drive
device. It helps to make welding easier through position the
work-piece in a suitable position by lifting, rotating and flip.
Welding positioners can mainly improve the welding accuracy of
weldment, make the welding position and welding speed larger.
Description:
Welding positioner is consisting of worktable revolving mechanism,
overturning device and electric control system. The work-piece can
be reach to the most suitable position through worktable revolving
and overturning device.
The worktable revolving controlled by step-less frequency
conversion to achieve a best welding speed.
Standard type welding positioner can't meet all work-pieces’
processing, please provide your work-piece’s weight, shape and
other specification in detail so that we can provide the best
solution way for your reference.
Parameter:
Model | Rated weight bearing (kg) | Rotation speed (rpm) | Speed of table tiling (rpm) | Worktable Tilting angle(°) | Dia. of working table (mm) | Tilting Driving Power (Kw) | Revote Driving Power(Kw) | Speed Adjusting Way | Max gravity center (mm) | Max eccentricity distance (mm) | Equipment Weight(Kg) |
HB-3 | 300 | 0.2-2 | ≈ 0.9 | 0-120 | Φ600 | 0.37 | 0.37 | VFD | 200 | 150 | 260 |
HB-6 | 600 | 0.1-1.1 | ≈ 0.8 | 0-120 | Φ800 | 0.55 | 0.37 | 250 | 150 | 700 |
HB-12 | 1200 | 0.1-1 | ≈ 0.5 | 0-120 | Φ1200 | 1.1 | 0.75 | 250 | 200 | 1000 |
HB-20 | 2000 | 0.09-0.9 | ≈ 0.4 | 0-120 | Φ1200 | 1.5 | 1.1 | 300 | 250 | 2000 |
HB-30 | 3000 | 0.08-0.8 | ≈ 0.3 | 0-120 | Φ1400 | 2.2 | 1.5 | 400 | 250 | 3350 |
HB-50 | 5000 | 0.07-0.7 | ≈ 0.2 | 0-120 | Φ1600 | 3 | 1.5 | 400 | 250 | 4300 |
| HB-80 | 8000 | 0.06-0.6 | ≈ 0.14 | 0-120 | Φ2000 | 4 | 2.2 | 400 | 200 | 8000 |
HB-100 | 10000 | 0.06-0.6 | ≈ 0.14 | 0-120 | Φ2000 | 4 | 3 | 400 | 200 | 8200 |
Applications:
It used in many industries such as pipe, tank, pressure vessel,
boiler, freezing equipment, power station construction,
metallurgical, engineering machinery, marine building, and
petro-chemical industries etc.
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of
operation.
3. Steel and rubber roller or PU roller which can ensure a long
time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.
Company Profile:
Wuxi H-welding Machinery Co., Ltd was set up in 2017. H-welding is
a technical and production-oriented enterprise that is mainly
engaged in R&D, design, manufacturing, installation and
commissioning, technical training, and consulting services of
industrial robot integration, intelligent welding equipment, steel
structure automatic production lines, and various non-standard
customized automatic equipment.
The H-welding has always implemented the business philosophy of
“integrity and pragmatism,people-oriented”, with the tenet of
“high-quality products, first-class service”, together with the
rich experience accumulated over the years, combined with
international advanced welding and automation equipment technology,
and constantly develop new products according to market needs.
H-welding actively introduces international advanced industry
technology and strives to develop and provide customers with a full
range of solutions through scientific management methods, advanced
business concepts, and strong technical development strengths.
